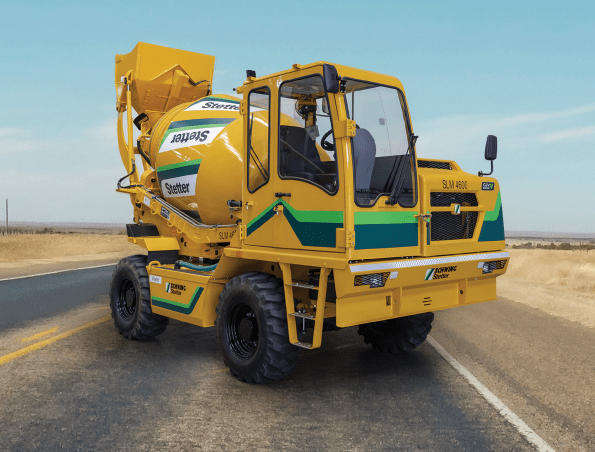

SCHWING Self Loading Mixer
The new generation of SCHWING Self Loading Mixers is designed to match today’s construction demands—more output, less fuel, and cleaner performance. Powered by the latest CEV Stage V (BS5) engine, our machines are more fuel-efficient, produce lower emissions, and meet government norms for green construction. That means more savings, smoother operation, and better performance at every site. With SCHWING Stetter’s trusted quality and nationwide support, you get a mixer that’s ready for any challenge—day after day.
Why SCHWING SLM?
- CEV Stage V Engine – Less Fuel, More Work
- Stronger Drum, Longer Life
- Accurate Batching, Zero Wastage
- Drives Anywhere, Works Everywhere
- More Concrete in Less Time
- Easy to Operate, Easy to Maintain
- 240° Drum Rotation for Easy Pouring
- Trusted German Engineering, Made in India
Technical Sheet
| UNIT | SLM BEE 2.1 | SLM 2100 | SLM 2600 | SLM 4300 | SLM 4600 |
|---|---|---|---|---|---|
| ENGINE | |||||
| Engine Capacity (hp (kW)) | 49.5 (36.3) | 49.5 (36.3) | 74.5 (54.64) | 110 (80.68) | 110 (80.68) |
| Transmission | – | 4 speed automotive type | |||
| Engine Make | CEV 5, KOEL | CEV 5, KOEL | CEV 5, Mahindra | CEV 5, Mahindra | CEV 5, Mahindra |
| MIXER | |||||
| Concrete Batch Volume (m³) | 2.1 | 2.1 | 2.6 | 4.3 | 4.6 |
| Drum slewing (Degree) | – | 216 | 216 | 255 | 255 |
| Drum rotation (rpm) | 0 to 21 | 0 to 21 | 0 to 21 | 0 to 21 | 0 to 21 |
| Loading shovel (Liter) | 380 | 415 | 415 | 600 | 600 |
| Water tank capacity (Liter) | 380 | 380 | 380 | 750 | 750 |
| Vehicle speed max. (km/hr) | 22 | 27 | 27 | 29 | 29 |
| Gradeability (Degree) | 28° (54%) | 28° (54%) | 24° (44%) | 24° (44%) | 24° (44%) |
| Steer drive axle | – | 4 Speed automotive type, Integrated 2 stage reduction gearbox | |||
| Brake | – | Dual brake circuit with Power Assisted Hydraulic Brake | |||
| Steering system | – | Hydrostatic steering (Fully Powered) | |||
| Weight unladen** (kg) | 5720 | 6650 | 5940 | 8990 | 9182 |
| Weight unladen(SV)** (kg) | – | – | 6791 | 9210 | 9400 |
| DIMENSION | |||||
| Length (mm) | 4760 | 4690 | 4690 | 5987 | 5987 |
| Width (mm) | 2160 | 2140 | 2140 | 2425 | 2425 |
| Height (mm) | 3350 | 3350 | 3350 | 4008 | 4008 |
** Notes: Weights may vary ±10%. At ‘ZERO’ degree ground level.
Options
- GPS System
- Rear / loading view camera
- Ground control operation
- Admixture system
- Centralized hand operated greasing system
- Cold start kit
- Hydraulic wet braking system
- Internet of Things (IoT)
